IBM ServeRAID M1015 SAS – SATA
2.310.000 ₫
(*) Giá chưa bao gồm thuế VAT
Product ID: 46M0831 FRU: 46M0861
Features: Eight internal 6 Gbps SAS/SATA ports; Supports SAS and SATA drives (but not in the same RAID volume); Two Mini-SAS internal connectors (SFF-8087); 6 Gbps throughput per port; Supports RAID levels 0, 1, 10 (RAID levels 5 and 50 with optional ServeRAID M1000 Series Advanced Feature Key); Warranty 12 months.
The ServeRAID M1015 part number includes the following items:
- One ServeRAID M1015 adapter card with full-height bracket
- One replaceable low-profile (2U) bracket
- Documentation CD
- The IBM Important Notices Document

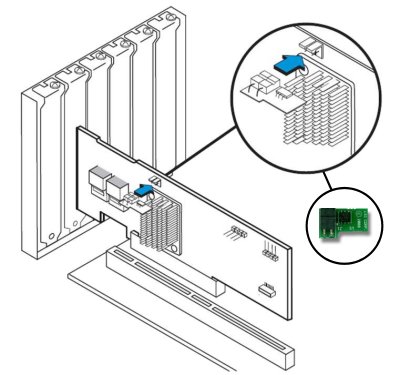

Shows the ServeRAID M1000 Series Advanced Feature Key attached to the ServeRAID M1015 controller just above the heat sink.
Figure 2. ServeRAID M1000 Series Advanced Feature Key
Specifications
The ServeRAID M1015 SAS/SATA Controller has the following specifications:
Eight internal 6 Gbps SAS/SATA ports
Supports SAS and SATA drives (but not in the same RAID volume)
Two Mini-SAS internal connectors (SFF-8087)
6 Gbps throughput per port
LSI SAS2008 6 Gbps RAID on Chip (ROC) controller
x8 PCI Express 2.0 host interface
Supports RAID levels 0, 1, 10 (RAID levels 5 and 50 with optional ServeRAID M1000 Series
Advanced Feature Key)
Connects to up to 16 SAS or SATA drives
Supports up to 16 logical volumes
Supports LUN sizes up to 64 TB
Configurable stripe size up to 64 KB
Compliant with Disk Data Format (DDF) configuration on disk (COD)
S.M.A.R.T. support
