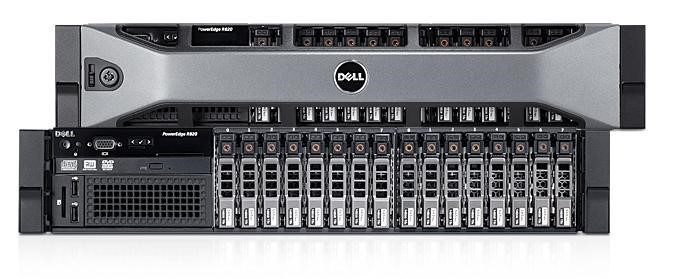

R820 Dell PoweEdge E5-4620v2 04 x CPU

Category: Dell servers

345.100.000 ₫

(*) Giá chưa bao gồm thuế VAT

R820 Rack – 04 x CPU

04 x Intel Xeon E5-4620 v2 2.6GHz, 20M Cache, 7.2GT/s QPI, Turbo, 8C, 95W;
08 x 16GB Memory (1X16GB), 1600Mhz, Dual Ranked, LVRDIMMs;
06 x 1TB 7.2K RPM SATA 2.5″ Hard Drive – HotPlug;
12.7 Tray DVD ROM;
Dual, Hot-plug, Redundant Power Supply (1+1), 1100W;
Warranty 36 months, NBD Onsite

Concentrated power and capacity

Enhance data center application capacity by expanding your virtual environment using the massive memory footprint, I/O (input/output) options, processing power and flexible fabric choices of the PowerEdge™ R820.

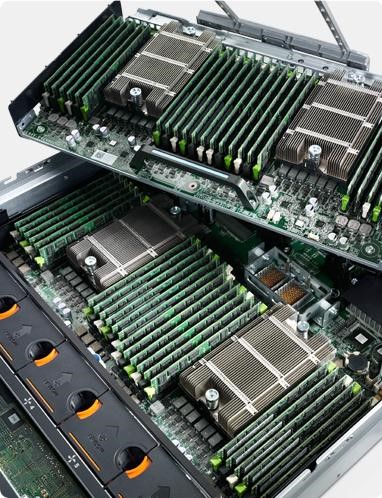

THT_Dell_R820_RAM

Peak server performance

Tap the improved, state-of-the-art processing power of the Intel® Xeon® processor E5-4600 and E5-4600 v2 product families and hyper-dense, 48-DIMM memory. Built using 22-nanometer process technology with up to twelve cores per processor, the Intel Xeon processor is designed for super-fast performance for compute-intensive tasks.

Advanced I/O and virtualization

Help enhance your data center performance with the balanced, scalable I/O (input/output) capabilities of the PowerEdge™ R820 that include integrated PCIe Gen3-capable expansion slots.
Flexible and scalable networking
Tailor your network throughput to match your application needs with features like switch independent partitioning that allow you to take full advantage of your additional I/O performance.

Unrestrained production

Unleash your most demanding virtualization and scalable database applications with the efficient and easily managed PowerEdge R820 rack server.

Specifications

Processor

Intel® Xeon® processor E5-4600 product family

Processor sockets: 4

Internal interconnect:
2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s

Cache:
2.5MB per core; core options: 4, 6, 8

Form factor:
Rack 2U

Operating System

Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®

Chipset

Intel C602

Memory¹

Up to 3TB (48 DIMM slots) 4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s

Storage

Maximum internal storage 16TB

Drive Bays

Up to sixteen 2.5” hot-plug SAS, SATA, or SSD

Hard drives:
Hot-plug hard drive options:
2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512e (15K)
Self-Encrypting drives available

Slots

7 PCIe slots:
Two x16 half-length, full-height
One x8 half-length, full-height
Three x8 half-length, half-height
One x8 half-length, full-height for the RAID controller

RAID Controllers

Internal controllers:
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non-RAID):
6Gbps SAS HBA

Communications

Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM)

Power

Titanium efficiency, hot-plug redundant 750W power supply
Platinum efficiency, hot-plug redundant 750W or 1100W power supplies
Auto-ranging power supplies

Availability

High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug
redundant fans; optional bezel; luggage-tag; ECC memory, interactive LCD screen; extended thermal support;
ENERGY STAR® compliant, extended power range; Switch Agnostic Partitioning (SWAP)

Management

Remote management:
iDRAC7 Express (default) or iDRAC7 Enterprise (upgrade option), both with Lifecycle Controller
8GB or 16GB vFlash media (upgrade options)

Systems management:
IPMI 2.0 compliant
Dell OpenManage™ Essentials
Dell OpenManage Power Center
Dell OpenManage Connections:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell plug-in for VMware® vCenter™
• HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

Rack Support

ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks.
