R520 Dell PowerEdge E5-2403v2

Category: Dell servers

114.210.000 ₫

(*) Giá chưa bao gồm thuế VAT

PowerEdge R520 Rack Server
– 02 x Intel Xeon E5-2403 v2 1.80GHz 10M Cache 6.4GT/s QPI;
– 08 x 16GB RDIMM, 1600Mhz, Low Volt, Dual Rank, x4 Bandwidth;
– 03 x 2TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive;
– DVD+/-RW ROM, SATA, Internal;
– Hot-plug, Redundant Power Supply, 750W;
– Warranty 36 months, NBD Onsite.

Performance and scalability

Get more from a wide range of applications with the PowerEdge R520’s configuration flexibility and capacity for growth.

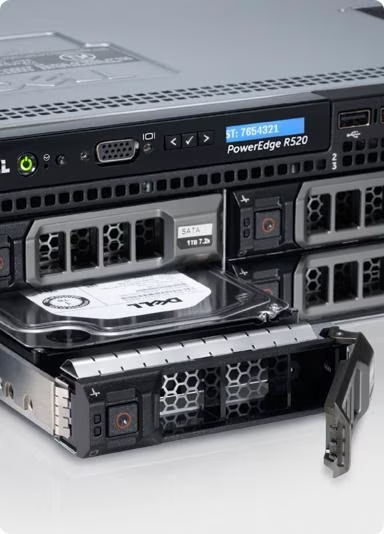

Dell PowerEdge R520 E5-2403v2

Flexible computing platform

Tackle your core business applications and virtualization requirements with the power and versatility of the PowerEdge R520. With the Intel® Xeon® processor E5-2400 and E5-2400 v2 product families and up to 12 DIMMs of memory, the R520 is designed to deliver the best combination of performance, built-in capabilities and optional features for your growing business.

High-capacity storage options

Configure storage options to suit your needs. The PowerEdge™ R520 enables you to tailor your system with up to eight internal drives, four PCI Express (PCIe) expansion slots and either hardware or software RAID options for data protection.
Extensive I/O bandwidth
Get results quickly for your data-intensive applications and databases with PCIe 3.0-enabled expansion slots and flexible I/O options.

Operational efficiency

Leverage the R520’s scalable design and wide array of reliability, availability and serviceability (RAS) features to help fuel your business growth.

Dell PowerEdge R520 E5-2403v2

Scalable storage density

Be able to grow your business and address unpredictable application demands with the R520’s scalable high capacity.
Intelligent systems managementSimplify deploying, updating, monitoring and maintaining your PowerEdge™ servers with the Dell™ OpenManage™ portfolio.

Outstanding server reliability

Take advantage of PowerEdge RAS features that help ensure fast, highly available service from your R520 server.

The new generation PowerEdge experience

Make IT the engine for your business success. The newest generation of PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for both large and small data center environments.

Improve operational efficiency with enhanced systems management

Streamline operations and help boost productivity to get the most out of every dollar spent. Manage your Dell PowerEdge™ servers in complex IT environments by automating the most essential server lifecycle management tasks: deploy, update, monitor and maintain. For more information, visit dell.com/openmanage.

Global Services and Support

Dell Services can help reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team takes a holistic view of your needs and designs solutions for your environment and business objectives while using established delivery methods, local talent and in-depth domain knowledge to help you lower your total cost of ownership.

Dell PowerEdge R520 E5-2403v2

Specifications

Processor

Intel® Xeon® processor E5-2400 and E5-2400 v2 product families

Processor sockets: 2
Internal interconnect:
Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s

Cache:
2.5MB per core; core options: 4, 6, 8, 10

Operating System

Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®

Chipset

Intel C602

Memory

Up to 384GB (12 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

Storage

Maximum internal storage:
Up to 32TB

Drive Bays

Up to eight 3.5” hot-plug SAS, SATA or SSD

Slots

4 PCIe slots:

With two processors:

One x16 PCIe slot with x16 bandwidth, half-length, half-height
One x16 PCIe slot with x8 bandwidth, full-length, full-height
Two x16 PCIe slots with x8 bandwidth, half-length, full-height

With one processor:

One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x8 bandwidth, full-length, full-height
Two x8 PCIe slots with x4 bandwidth, half-length, full-height

Network Controller

Embedded NIC:
Broadcom® 5720 Dual Port 1Gb LOM
I/O adapter options:
1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5719 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter
10Gb Converged Ethernet:
Brocade® BR1020 Dual Port 10Gb CNA
QLogic® QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CNA
Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA
10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapter
FC16/FC8/FC4 HBA:
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
QLogic QLE2562 8Gb Dual Port FC HBA
QLogic QLE2660 16Gb Single Port FC HBA
QLogic QLE2662 16Gb Dual Port FC HBA
Emulex® LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA

Power

Titanium efficiency, hot-plug redundant 750W power supply
Platinum efficiency, hot-plug redundant 750W or 495W power supply
Silver efficiency, cabled 550W power supply
91% efficiency, 1100W DC power supply
Auto-ranging power supplies

Availability

High-efficiency, hot-plug, redundant power supplies; DC power supply; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant; extended power range; switch independent partitioning

Chassis

Form factor:
2U rack

Management

Remote Management
Basic management (default)
iDRAC7 with Lifecycle Controller
iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade)
8GB vFlash (upgrade), 16GB vFlash (upgrade)

Systems Management
IPMI 2.0 compliant
OpenManage™ Essentials
OpenManage Power Center
Dell OpenManage Connections:
• OpenManage Integration Suite for Microsoft® System Center
• Dell plug-in for VMware® vCenter®
• HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management (NSM)

Rack Support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
