HPE MSA 2040 Storage 400GB P9H24SB
Price: Contact
(*) Giá chưa bao gồm thuế VAT
Product ID: P9H24SB
Drive description: (199) SFF SAS/MDL SAS/SSD or; (96) LFF SAS/MDL SAS; Maximum including expansion, supported, depending on model.
Capacity : 768 TB Maximum; Including expansion, depending on model
Overview
HPE MSA 2040 Storage
ENERGY STAR certified HPE MSA 2040 is a high-performance storage array designed for entry-level Hewlett Packard Enterprise customers desiring 8Gb/16Gb Fibre Channel, 1GbE/10GbE iSCSI, or 12Gb SAS connectivity with 4 host ports per controller. The MSA 2040 Storage array provides an excellent value for customers needing performance balanced with price to support initiatives such as consolidation and virtualization.
- The MSA 2040 delivers this performance by offering:
- High performance controller architecture
- 6GB cache per controller , 12GB per storage array
- Support for SSDs, Enterprise SAS HDDs, Midline SAS HDDs, and Self Encrypting Drives
- SAN and SAS interfaces
- Up to four (4) host ports per controller, 8 host ports per storage array
- Two new MSA 2040 Controllers:
– MSA 2040 SAN Controller
+ 8Gb/16Gb FC connectivity and/or
+ 1GbE/10GbE iSCSI connectivity
– MSA 2040 SAS Controller
+ 6Gb/12Gb SAS connectivity
The HPE MSA 2040 Storage ships standard with a license for 64 snapshots for increased data protection. The MSA2040 now offers a simplified licensing strategy with one optional software suite. The Advanced Data Services Suite include the following
software licenses:
- HPE MSA 2042 Performance Automated Tiering LTU
- HPE MSA 512-Snapshot Software LTU
- HPE MSA Remote Snap Software LTU
What’s New in the MSA 2040 array family
Introducing new capacity Hard Disk Drive and Self Encrypted Drive
HPE MSA 900GB 12G SAS 15K SFF (2.5in) Enterprise 3yr Warranty Hard Drive HPE MSA 4TB 12G SAS 7.2K LFF
(3.5in) Midline Self Encrypted 1yr Warranty Hard Drive
HPE MSA 2040 Storage (SFF

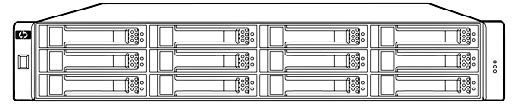

HPE MSA 2040 Storage (LFF)
MSA 2040, 2 SAN controllers installed
1. Power supplies 4. Management Ethernet port
2. 8 and/or 16Gb Fibre
Channel, 1 and/or 10GbE
iSCSI
5. Expansion port
3. CLI port (mini-USB)
Specifications
MSA 2040
| POWER REQUIREMENTS | |
| Input Power Requirements (typical-running I/O) SFF/LFF arrays |
110VAC 3.32A, 344-390 W; 220VAC 1.61A,374-432W |
| Max Input Power | 100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A |
| Heat Dissipation | 1622 BTU/hr |
| TEMPERATURE AND HUMIDITY RANGES | |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Shipping Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 90% RH @ 104°F (40°C) non-condensing |
| Non-Operating Humidity | Up to 93% RH @ 104°F (40°C) |
| DECLARED ACOUSTIC NOISE LEVELS | |
| Sound Power | A weighted sound power LWAd=6,75 B |
| Sound Pressure | A weighted sound pressure LpAm – 55dB |
| SHOCK AND VIBRATION | |
| Shock, Operational | 3G’s for 11 milliseconds |
| Shock, Non-Operational | 15G 11ms half sine |
| Vibration, Operational | 5-500Hz, 0.14 Grms shaped |
| Vibration, Non- Operational |
3-365-3Hz, 1.22 Grms,z-axis,0.85 Grms, X&Y axis shaped spectrum |
| PHYSICAL | |
| Height | 3.5 in/ 8.9 cm |
| Depth (excluding cables) (back of ear to back of controller handle) |
MSA 2040 SFF 24-bay array: 19.5 in / 49.5 cm MSA 2040 LFF 12-bay array: 22.5in. / 57.2 cm |
| Width (body only) | 17.6 in / 44.7 cm (w/ ears 19 in / 48.26 cm) |
| Chassis Weight (no controllers) |
MSA 2040 LFF chassis: 31 lbs. (DC-pwr model: 32.6 lbs) MSA 2040 SFF chassis: 29.1 lbs (DC-pwr model: 30.7lbs) |
MSA 2040 Controllers:
| User Interface | Status and activity provided via management interfaces. Status Indicators on front of Controller |
| RAID Support | 0, 1, 3, 5, 6, 10, 50 |
| Cache Memory | 4GB Read/Write. ECC protection with backup to Flash memory (indefinite backup) |
| Cache Backup | ECC protection with back up to flash memory (indefinite backup) |
| Upgradeable Firmware | yes |
| Disk Drive and Enclosure Protocol Support |
6 Gb SAS – Serial Attached SCSI |
| Host Ports | FC: 4 x 8Gb Fibre Channel (per controller) FC: 4 x 16Gb Fibre Channel (per controller) iSCSI: 4 x 10GbE iSCSI (per controller) iSCSI: 4 x 1GbE iSCSI (per controllerSAS: 4 x 12 Gb mini-SAS HD using SAS 3.0 SFF-8644 connect interface (per controller) |
| Expansion Port | SAS (SFF8088) 4x lane 6 Gb SAS |
| Weight, controller | MSA 2040 SAN Controllers 4.8 lbs. |
MSA 2040 Regulatory Info
| Safety | UL 60950-1 (USA) |
| CAN/CSA-C22.2 No.60950-1-03 (Canada) | |
| EN 60950-1 (European Union) | |
| GS mark (Germany) | |
| IEC 60950-1 (International) | |
| CCC Mark (power supply only, China PRC) | |
| Electromagnetic Compatibility | VCCI:2008-04 Class A (Japan) |
| FCC 15:109(g) Class A (USA) | |
| ICES-003:2004 Class A (Canada) | |
| EN55022 : (European Union Class A); CISPR 22 (International Class A) | |
| EN61000-3-2 : (Harmonics) (European Union) | |
| EN61000-3-3 : (Flicker) (European Union) | |
| EN 55024 (European Union, Immunity, Class A);CISPR 24 (International Immunity, Class A) |
|
| AS/NZS CISPR 22, Class A (Australia, New Zealand) | |
| CNS 13438 Taiwan, Class A (Taiwan) | |
| KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea) | |
| RoHS and WEEE | RoHS-6/6 Compliance, China RoHS, WEEE |
| Country Approvals | United States ,Australia/New Zealand, Canada, China (PRC), European Union, Germany (GS Mark), Japan, South Korea, Taiwan |
