R730 DELL PowerEdge E52630v3 08 x 2TB HDD
236.000.000 ₫
(*) Giá chưa bao gồm thuế VAT

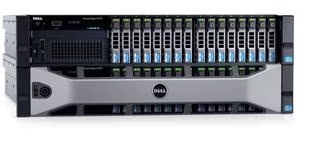

PowerEdge R730 Rack Server
– 02 x Intel® Xeon® E5-2630 v3 2.4GHz, 20M Cache, 8.00GT/s QPI, Turbo, HT, 8C/16T (85W) Max Mem 1866MHz;
– 04 x 16GB RDIMM, 2133 MT/s, Dual Rank, x4 Data Width;
– 08 x 2TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive;
– 02 x Internal Dual SD Module with 16GB SD Cards
– DVD+/-RW ROM, SATA, Internal;
– Dual, Hot-plug, Redundant Power Supply (1+1), 750W;
– Warranty 36 months, NBD Onsite.
Tackle almost any workload
The incredible versatility of the PowerEdge R730 server delivers outstanding functionality in just 2U of rack space. With the combination of powerful processors, large memory, fast storage options and GPU accelerator support, the R730 performs exceptionally well in a number of demanding environments.
Virtualization and cloud applications
The option for up to two 300W dual-width accelerators/GPUs (choose from Intel® Xeon Phi™, NVIDIA® Tesla® and AMD FirePro™) supports environments that require processing acceleration, including graphics-intensive virtual desktop infrastructure (VDI) implementations, such as CAD/CAM and other research and development applications. Seven PCIe Gen3 expansion slots plus a dedicated slot for a RAID controller further enhance IO flexibility to help make the R730 an ideal compute node for IT as a service (XaaS) providers as well as high-performance computing (HPC) and medical-imaging solutions.
The option for up to two 300W dual-width accelerators/GPUs (choose from Intel® Xeon Phi™, NVIDIA® Tesla® and AMD FirePro™) supports environments that require processing acceleration, including graphics-intensive virtual desktop infrastructure (VDI) implementations, such as CAD/CAM and other research and development applications. Seven PCIe Gen3 expansion slots plus a dedicated slot for a RAID controller further enhance IO flexibility to help make the R730 an ideal compute node for IT as a service (XaaS) providers as well as high-performance computing (HPC) and medical-imaging solutions.
Accelerate IT service deployment
Streamline infrastructure provisioning, speed up workload deployment and simplify IT service delivery through the unified console and highly intuitive user interface of Active System Manager. Enhanced for the latest generation of PowerEdge servers, it features: Template-based server and IO configurations, identity management and service migration capabilities
Fast workload deployment with an expanding out-of-box template library
Cloud enablement with support for infrastructure as a service (IaaS) and platform as a service (PaaS), including Red Hat and VMware solutions
Specifications
Processor
Intel® Xeon® E5 2600 v3 processors
Operating System
Microsoft Windows® Server 2008/2012 SP2, x86/x64 (x64 includes Hyper-VTM )
Microsoft Windows® Server 2008/2012 R2, x64 (includes Hyper-VTM v2)
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX
Chipset
Intel C610 series chipset
Memory
Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
Embedded Hypervisor (Optional)
Optional supported hypervisors:Microsoft® Windows Server® 2012, with Hyper-V®Citrix® XenServer®VMware® vSphere® ESXiTM
Storage
HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives”
8 x 3.5” – up to 48TB via 6TB hot-plug NL SAS hard drives”
Drive Bays
Internal hard drive bay and hot-plug backplane:
Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

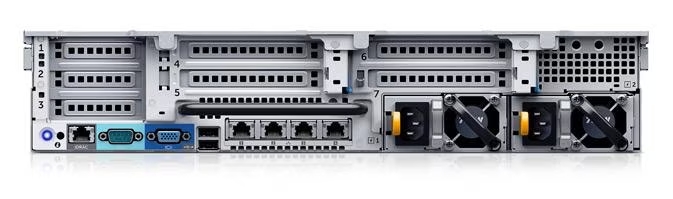

Slots
Slot configuration #1:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Dedicated RAID card slotSlot configuration #2:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card slot
RAID Controllers
Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Network Controller
4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Communications
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power
1600W AC, 86 mm (Platinum)
1100W AC, 86 mm (Platinum)
1100W DC, 86 mm (Gold)
750W AC, 86 mm (Platinum)
750W AC, 86 mm (Diamond)
495W AC, 86 mm (Platinum)
Availability
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Chassis
Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
Management
Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
iDRAC Direct
iDRAC Quick Sync
OpenManage Mobile
