Máy chủ HP DL360G9 818209-B21
Giá: Liên hệ
(*) Giá chưa bao gồm thuế VAT
Product ID: 818209-B21
Intel® Xeon® E5-2650 v4 12C, 2.2 GHz, 30MB, 105W; 32GB (2x16GB) RDIMM; Dynamic Smart Array B140i and Smart Array P440ar; 800W PS; Rack 1U; Warranty 36 months.
Overview
ProLiant DL360 Generation9 (Gen9)
The Hewlett Packard Enterprise leading server for dense general-purpose computing, the HPE ProLiant DL360 Gen9 Server delivers increased performance with the best memory and I/O expandability packed in a 1U dense rack design. Reliability, serviceability and always on availability, backed by a comprehensive warranty, make it ideal for the most space constrained server
workloads.

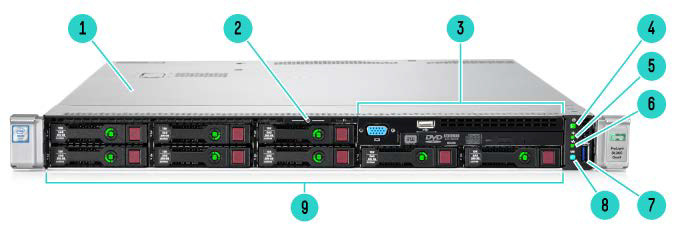

Front View
1. Access Panel
2. Serial Label Pull Tab
3. HPE Universal Media Bay or NVMe
NOTE: Shown w/ VGA, USB 2.0 and DVD-ROM or DVD-RW option. Alternative options: NVMe HDD Kits, 2 SFF HDDs or VGA and USB 2.0.
4. Power On/Standby button and system power LED button
5. Health LED
6. NIC Status LED
7. USB 3.0 Connector 8. Unit
8. Identification Button & LED
9. SAS/SATA/SSD/NVMe Drive Bays
NOTE: 8SFF Model shown can be configured: 8 SAS/SATA Drives or 10 SAS/SATA drives; 4 SAS/SATA (Drive 1-4) + 6 NVMe (Drive 5-10); 8 SAS/SATA + Universal Media Bay; 4 LFF Models are also available.

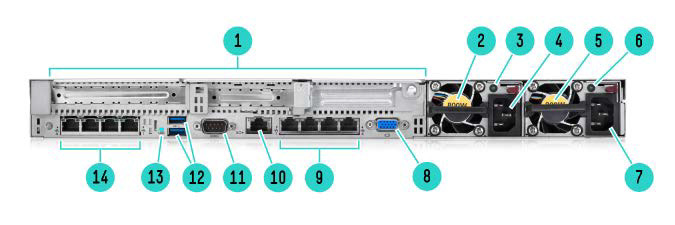

Rear View
1. PCIe 3.0 Slots 1-3
NOTE: Slot 1 and 2 Riser Ships Standard, Slot 3 Optional one FH/ ¾ length and two Low Profile slots available (shown) or two FH/ ¾ length slots.
2. HPE Flexible Slot Power Supply Bay 2
3. Power Supply 2 Status LED
4. Power Supply 2 C13 Connection
5. HPE Flexible Slot Power Supply Bay 1
6. Power Supply 1 Status LED
7. Power Supply 1 C13 Connection
8. Video Connector
9. Embedded 4x1GbE Network Adapter
10. Dedicated iLO 4 connector
11. Serial Port Connector (Optional)
12. USB 3.0 Connectors (2)
13. Unit Identification LED
14. FlexibleLOM bay (Optional)
NOTE: Shown: 4x1Gbe.

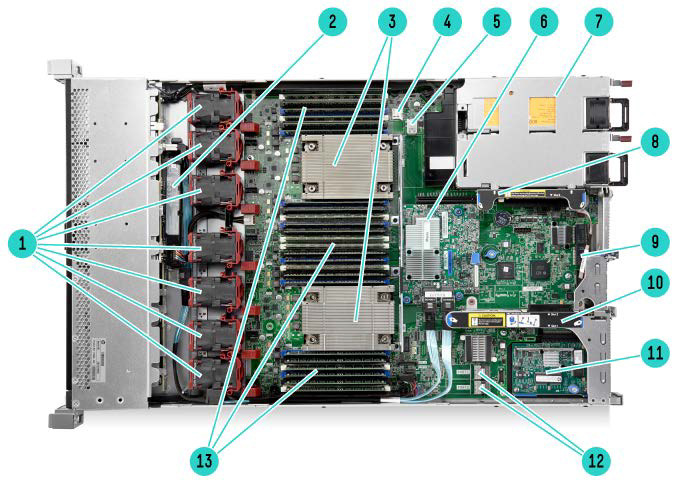

Internal View
1. 5 Standard Fans Ship for 1P and 7 Standard Fans Ship for 2P
NOTE: High Performance Fans also available as an option.
2. HPE Smart Storage Battery (Optional)
3. 2 Processors with HPE Smart Socket Guide
4. MicroSD card slot
NOTE: Optional Dual Micro-SD option.
5. Dual Internal USB 3.0 connector
6. HPE Flexible Smart Array or Smart HBA (Optional)
NOTE: H240ar shown and P440ar available.
7. 2 HPE Flexible Slot Power supplies
NOTE: Optional Micro UPS option
8. Secondary PCIe 3.0 riser for PCIe slot 3 (requires CPU 2)
9. Embedded 4x1Gbe NIC
10. Primary PCIe 3.0 riser for PCIe slots 1 & 2
11. FlexibleLOM Bay (Optional)
12. Embedded SATA Controller ports
What’s New
• Updated HDDs and SSDs
Standard Features
NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.
| Model | CPU
frequency |
Cores | L3 Cache | Power | QPI | DDR4 Hz |
| E5-2699v3 | 2.3GHz | 18 | 45MB | 145W | 9.6GT/s | 2133 |
| E5-2698v3 | 2.3GHz | 16 | 40MB | 135W | 9.6GT/s | 2133 |
| E5-2697v3 | 2.6GHz | 14 | 35MB | 145W | 9.6GT/s | 2133 |
| E5-2695v3 | 2.3GHz | 14 | 35MB | 120W | 9.6GT/s | 2133 |
| E5-2690v3 | 2.6GHz | 12 | 30MB | 135W | 9.6GT/s | 2133 |
| E5-2687Wv3 | 3.1GHz | 10 | 25MB | 160W | 9.6GT/s | 2133 |
| E5-2683v3 | 2.0GHz | 14 | 35MB | 120W | 9.6GT/s | 2133 |
| E5-2680v3 | 2.5GHz | 12 | 30MB | 120W | 9.6GT/s | 2133 |
| E5-2670v3 | 2.3GHz | 12 | 30MB | 120W | 9.6GT/s | 2133 |
| E5-2667v3 | 3.2GHz | 8 | 20MB | 135W | 9.6GT/s | 2133 |
| E5-2660v3 | 2.6GHz | 10 | 25MB | 105W | 9.6GT/s | 2133 |
| E5-2650v3 | 2.3GHz | 10 | 25MB | 105W | 9.6GT/s | 2133 |
| E5-2650Lv3 | 1.8GHz | 12 | 30MB | 65W | 9.6GT/s | 2133 |
| E5-2643v3 | 3.4GHz | 6 | 20MB | 135W | 9.6GT/s | 2133 |
| E5-2640v3 | 2.6GHz | 8 | 20MB | 90W | 8.0GT/s | 1866 |
| E5-2637v3 | 3.5GHz | 4 | 15MB | 135W | 9.6GT/s | 2133 |
| E5-2630v3 | 2.4GHz | 8 | 20MB | 85W | 8.0GT/s | 1866 |
| E5-2630Lv3 | 1.8GHz | 8 | 20MB | 55W | 8.0GT/s | 1866 |
| E5-2623v3 | 3.0GHz | 4 | 10MB | 105W | 8.0GT/s | 1866 |
| E5-2620v3 | 2.4GHz | 6 | 15MB | 85W | 8.0GT/s | 1866 |
| E5-2609v3 | 1.9GHz | 6 | 15MB | 85W | 6.4GT/s | 1600 |
| E5-2603v3 | 1.6GHz | 6 | 15MB | 85W | 6.4GT/s | 1600 |
| E5-2699v4 | 2.2GHz | 22 | 55MB | 145W | 9.6GT/s | 2400 |
| E5-2698v4 | 2.2GHz | 20 | 50MB | 135W | 9.6GT/s | 2400 |
| E5-2697v4 | 2.3GHz | 18 | 45MB | 145W | 9.6GT/s | 2400 |
| E5-2697Av4 | 2.6GHz | 16 | 40MB | 145W | 9.6GT/s | 2400 |
| E5-2695v4 | 2.1GHz | 18 | 45MB | 120W | 9.6GT/s | 2400 |
| E5-2690v4 | 2.6GHz | 14 | 35MB | 135W | 9.6GT/s | 2400 |
| E5-2687Wv4 | 3.0GHz | 12 | 30MB | 160W | 9.6GT/s | 2400 |
| E5-2683v4 | 2.1GHz | 16 | 40MB | 120W | 9.6GT/s | 2400 |
| E5-2680v4 | 2.4GHz | 14 | 35MB | 120W | 9.6GT/s | 2400 |
| E5-2667v4 | 3.2GHz | 8 | 25MB | 135W | 9.6GT/s | 2400 |
| E5-2660v4 | 2.0GHz | 14 | 35MB | 105W | 9.6GT/s | 2400 |
| E5-2650v4 | 2.2GHz | 12 | 30MB | 105W | 9.6GT/s | 2400 |
| E5-2650Lv4 | 1.7GHz | 14 | 35MB | 65W | 9.6GT/s | 2400 |
| E5-2643v4 | 3.4GHz | 6 | 20MB | 135W | 9.6GT/s | 2400 |
| E5-2640v4 | 2.4GHz | 10 | 25MB | 90W | 8.0GT/s | 2133 |
| E5-2637v4 | 3.5GHz | 4 | 15MB | 135W | 9.6GT/s | 2400 |
| E5-2630v4 | 2.2GHz | 10 | 25MB | 85W | 8.0GT/s | 2133 |
| E5-2630Lv4 | 1.8GHz | 10 | 25MB | 55W | 8.0GT/s | 2133 |
| E5-2623v4 | 2.6GHz | 4 | 10MB | 85W | 8.0GT/s | 2133 |
| E5-2620v4 | 2.1GHz | 8 | 20MB | 85W | 8.0GT/s | 2133 |
| E5-2609v4 | 1.7GHz | 8 | 20MB | 85W | 6.4GT/s | 1866 |
| E5-2603v4 | 1.7GHz | 6 | 15MB | 85W | 6.4GT/s | 1866 |
| E5-2699Av4 | 3.6GHz | 22 | 55MB | 145W | 9.6GT/s | 2400 |
NOTE: Mixing of E5-2600 v3 and E5-2600 v4 processors is not supported
NOTE: All processors support Hyper-Threading except E5-2609 v4/v3 and E5-2603 v4/v3.
NOTE: Processors consuming up to 120w ship with standard heat sink.
• Processors consuming over 120w ships with a High Performance heat sink as standard.
• A High Performance heat sink can be added to help reduce power consumption (795235-B21).
| Chipset | Intel® C610 Series Chipset |
| Intel® E5-2600v4 Processor Family | |
| NOTE: For more information regarding Intel® chipsets, please see the following URL:http://www.intel.com/products/server/chipsets/ |
| On System Management Chipset | HPE iLO (Firmware HPE iLO4 2.0 or later) 4GB NAND NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs. |
| Memory One of the following depending on model |
Type: | ||
| HPE SmartMemory | |||
| DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) | |||
| DIMM Slots Available | 24 | (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) |
|
| Maximum Capacity (LRDIMM) | 3TB | (24 x 128GB LRDIMM) | |
| Maximum Capacity (RDIMM) |
768GB | (24 x 32GB RDIMM) | |
| Maximum Capacity (NVDIMM) |
128GB | (16 x 8GB NVDIMM)* | |
| NVDIMM support only with the E5-2600v4 processors, and RDIMMs only | |||
| – 128GB DIMMS cannot be mixed with any other size DIMMs. | |||
| – *NVDIMMs cannot be used with LRDIMMs | |||
| – *A maximum of 16 NVDIMMs can be supported | |||
| NVDIMMs are only supported on factory configured servers with E5-2600 v4 processors, not supported on servers upgraded from E5-2600 v3 to E5-2600 v4 processors. |
|||
Standard Features
| Memory Protection | Advanced ECC | Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip. |
| Online Spare | Memory online spare mode detects a rank that is degrading and switches operation to the spare rank. |
Expansion Slots
|
Primary Riser
|
Expansion
Slots # |
Technology
|
Bus
Width |
Connector
Width |
Bus
Number |
Form Factor
|
Notes
|
|
1
|
PCIe 3.0
|
X16
|
X16
|
7
|
Full-height, ¾
length (up to 9.5″) Slot |
Proc 1
|
|
|
2
|
PCIe 3.0
|
X8
|
X16
|
10
|
Full-height,
half-length Slot |
Proc 1
|
|
|
3
|
PCIe 3.0
|
X8
|
X8
|
13
|
Half
length/full height |
Proc 1
|
|
| NOTE: Bus Width indicates the number of physical electrical lanes running to the connector. | |||||||
|
Secondary Riser
|
Expansion
Slots # |
Technology
|
Bus
Width |
Connector
Width |
Bus
Number |
Form Factor
|
Notes
|
|
3
|
PCIe 3.0
|
X16
|
X16
|
16
|
Full-height,
full-length slot |
Proc 2
|
|
|
3
|
PCIe 3.0
|
X16
|
X16
|
20
|
Full-height,
full-length slot |
Proc 2
|
|
|
NOTE: *If secondary FH kit (867249-B21) is installed, then primary PCIe Slot 2 cannot be used. Only 2
FH slots are supported. |
|||||||
| Storage Controller One of the following depending on model |
Entry Models | HPE Dynamic Smart Array B140i Controller | |
| HPE H240ar Smart Host Bus Adapter | |||
| NOTE: For E5-2600v3 Entry models, the embedded B140i will operate in UEFI mode only. | |||
| For legacy mode support an additional controller will be needed. | |||
| For CTO orders please also select “HPE Legacy FIO Mode Setting”, 758959-B22. | |||
| NOTE: The embedded B140i defaults to AHCI off the chipset. HPE Dynamic Smart Array Controller needs to be enabled on the SATA only models if needed. |
|||
| Base Models | HPE Flexible Smart Array P440ar/2GB | ||
| Performance Models | HPE Flexible Smart Array P440ar/2GB | ||
| Internal Storage Devices | Optical Drive | 8 SFF with optional Universal Media bay | |
| One of the following depending on model | Option Kit 764632-B21 VGA, SFF DVD-RW USB Kit | ||
| Option Kit 818213-B21 VGA, SFF DVD-ROM USB Kit 4 LFF |
|||
| Option Kit 726536-B21 – HPE 9.5mm SATA DVD-ROM Jb Gen9 Kit | |||
| Option Kit 726537-B21 – HPE 9.5mm SATA DVD-RW Jb Gen9 Kit | |||
| NOTE: Optical cable kit Required for optical drives, 766203-B21 | |||
| Maximum Internal Storage | CAPACITY | CONFIGURATION | |
| Hot Plug SFF SAS SSD | 38.4TB | 10 x 3.84TB | |
| Hot Plug SFF SATA SSD | 38.4TB | 10 x 3.84TB | |
| Hot Plug SFF SAS | 20.0TB | 10 x 2.0TB | |
| Hot Plug SFF SATA | 20.0TB | 10 x 2.0TB | |
| Hot Plug LFF SAS SSD | 6.4TB | 4 x 1.6TB | |
| Hot Plug LFF SATA SSD | 15.36TB | 4 x 3.84TB | |
| Hot Plug LFF SAS | 40.0TB | 4 x 10TB | |
| Hot Plug LFF SATA | 40.0TB | 4 x 10TB | |
| Hot Plug SFF NVMe PCIe SSD | 27.36TB | 6 x 2.0TB NVMe + 4 x 3.84TB SFF SSD |
|
| Power Supply One of the following depending on model |
HPE 500W Flex Slot Platinum Hot Plug Power Supply NOTE: Available in 94% efficiency. HPE 800W Flex Slot Platinum Hot Plug Power Supply NOTE: Available in 94% and 96% efficiency. NOTE: Also available in -48VDC and 227VAC/380VDC power inputs, 720480-B21. HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply NOTE: Available in 94% efficiency. HPE Flexible Slot Battery Backup Unit Kits NOTE: Flex Slot Battery Backup provides 750W output and 500W in paralleled configuration. HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to “right-size” a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid “trapped” power capacity in the data center.All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page. |
||
