DL380G9 HP ProLiant 867448-S01

Overview

HPE ProLiant DL380 Generation9 (Gen9)

The HPE ProLiant DL380 Gen9 Server delivers the best performance and expandability in the Hewlett Packard Enterprise 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, make it ideal for any environment. Deploy the data center standard.

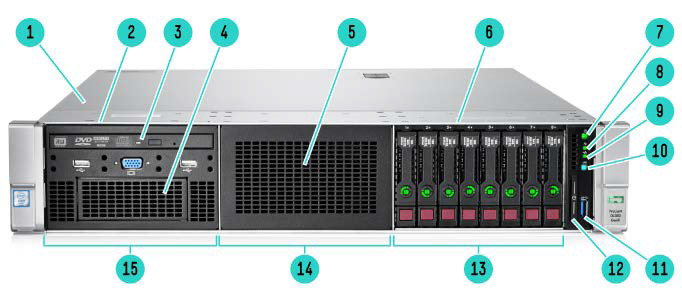

Front View – 8SFF Chassis with Optional Universal Media Bay shown

Quick removal access pane

Universal Media bay. 2 USB 2.0 and VGA standard (8SFF bay optional)

Optional Optical drive. Requires Universal Media bay

Optional 2 SFF HDD, blank shown. Requires Universal Media bay

Drive Bay 2. Blank shown, 8SFF or 6NVMe optional

8 SFF Drive Cage Bay

Power On/Standby button and system power LED button

Health LED

NIC status

UID button

USB 3.0

Serial label pull tag

Bay 3

Bay 2

Bay 1

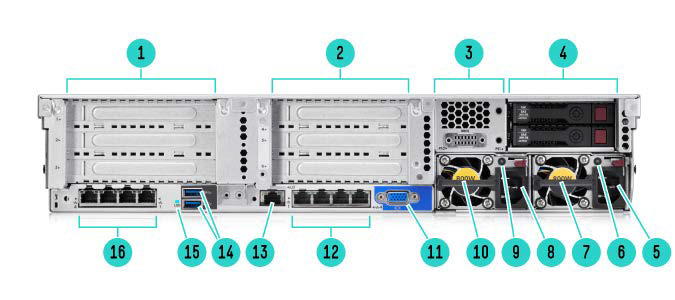

Rear View

PCI Slots

PCI Slots (Slots 1-3 top to bottom, riser shipped standard)

(Slots 4-6top to bottom, requires second riser card, and second processor)

Optional serial port

Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot Power Supply bay 2 (800w shown)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot Power Supply bay 1 (800w shown)

NOTE: Optional Battery Back up option.

VGA connector

Embedded 4x1GbE Network Adapter

Dedicated iLO connector

USB 3.0 connectors (2)

Unit ID LED

Optional FlexibleLOM ports (Shown: 4x1GbE)

Internal View

Fan cage shown with 6 standard Hot-plug fans (High Performance fans optional)

Optional HPE Smart Storage Battery MicroSD card slot

NOTE: Optional Dual MicroSD.

Internal USB 3.0 connector (2)

Optional HPE Flexible Smart Array or Smart HBA (H240ar shown)

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

NOTE: Optional Micro UPS Battery Back up option.

Connection for second (optional) riser (Required second CPU)

Embedded 4x1Gbe NIC

Primary PCIe riser, standard (Optional double wide GPU riser)

Optional FlexibleLOM slot

X4 SATA ports (1 and 2)

2 Processors, heatsink showing, with HPE Smart Socket Guide

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

What’s New

Expanded the HBA, HDD and SSD selection

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: All processors above 120W use a high efficiency Heatsink. Doublewide PCIe cards are only supported with this Heatsink. For processors with a standard Heatsink that require double wide PCIe cards, the Graphics Enablement kit option is also required (719082-B21).

NOTE: Mixing of E5-2600v3 and E5-2600v4 processors is not supported.

NOTE: Field upgrade from E5-2600v3 to E5-2600v4 is supported.

NOTE: All processors support Hyper-Threading except E5-2609 v4/v3 and E5-2603 v4/v3.

Chipset

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

Intel® E5-2600v4 Processor Family

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND

NOTE: Read and learn more in the iLO QuickSpecs

Memory

Type:

HPE SmartMemory

DDR4 Registered (RDIMM), Load Reduced (LRDIMM) or Persistent Memory (NVDIMM)

DIMM Slots Available 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)

Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM @2400MHz)*

Maximum Capacity (RDIMM) 768GB (24 x 32GB RDIMM @2400MHz)

Maximum Capacity (NVDIMM) 128GB (16 x 8GB NVDIMM)*

NVDIMM support only with the E5-2600v4 processors, and RDIMMs only

Note mixing of 2133 and 2400MHz memory is not supported

Note mixing of RDIMM and LRDIMM memory is not supported

Note the 128GB LRDIMM may not be mixed with other DIMM capacities/types

Memory Protection

Advanced ECC Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: All slots support PCIe cards to 150W or more depending on card, but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering.

NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). Slot 2 PCIe Riser (Optional 3-slot) 719073-B21

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: When populating the second optional riser slot, the second processor must be installed.

NOTE: All slots support PCIe cards to 150W or more depending on card but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering.

NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU kit (719082-B21).

Slot 1 PCIe Riser (Optional 2-slot) 719076-B21

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: This will replace the standard primary riser and supports double wide cards.

NOTE: All slots support PCIe cards to 150W or more depending on card, but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering.

NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21).

Storage Controller Entry Models HPE Dynamic Smart Array B140i Controller

Standard Features

NOTE: The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: The B140i defaults to AHCI off the chipset. Smart array needs to be enables on the SATA only models if required.

NOTE: The B140i will not operate in Legacy mode

Base Models HPE Dynamic Smart Array B140i Controller, HPE Flexible Smart Array P440ar/2G FIO Controller, HPE Flexible Smart Array P840/4G FIO Controller, HPE Smart Array P840ar/2G Controller

Performance Models HPE Dynamic Smart Array B140i Controller, HPE Flexible Smart Array P440ar/2GB

Internal Storage Devices

Optical Drive Ships standard in Performance Models, Optional: DVD-ROM, DVD-RW

Hard Drives None ship standard

Hard Drive Bays 8 SFF with optional Universal Media Bay, 8 SFF bay or 6 NVME drive options, 24 SFF plus optional 2 SFF drives rear, 12 LFF plus optional 3 LFF drives rear

NOTE: The 3 LFF rear drives will consume space for the secondary riser.

NOTE: The 12 LFF chassis also supports 2 SFF rear which allows for the second riser.

NOTE: The 6 NVMe drive option can only be leveraged in the SFF chassis and replaces Bay 2.

4 LFF drive bays total

NOTE: The Universal Media Bay (724865-B21) not available with the LFF chassis or the 24SFF front end, and can only be populated in Bay1.

NOTE: The 8SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade Bay2 should be populated second, with Bay 3 the last to be populated for a field upgrade to 24 SFF.

NOTE: The 4LFF chassis cannot be upgraded to 12LFF in the field.

NOTE: All Pre-configured Chassis come with an embedded 10-Port SATA controller. Optional HPE Flexible Smart Array and Smart SAS HBA Controllers can be added

Power Supply

HPE 500W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to “right-size” a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid “trapped” power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hp.com/go/hppoweradvisor.

Power specifications and technical content for all HPE Server power supplies can be found atHPE 500W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to “right-size” a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid “trapped” power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hp.com/go/hppoweradvisor.

Power specifications and technical content for all HPE Server power supplies can be found at http://www.hp.com/go/proliant/powersupply..
